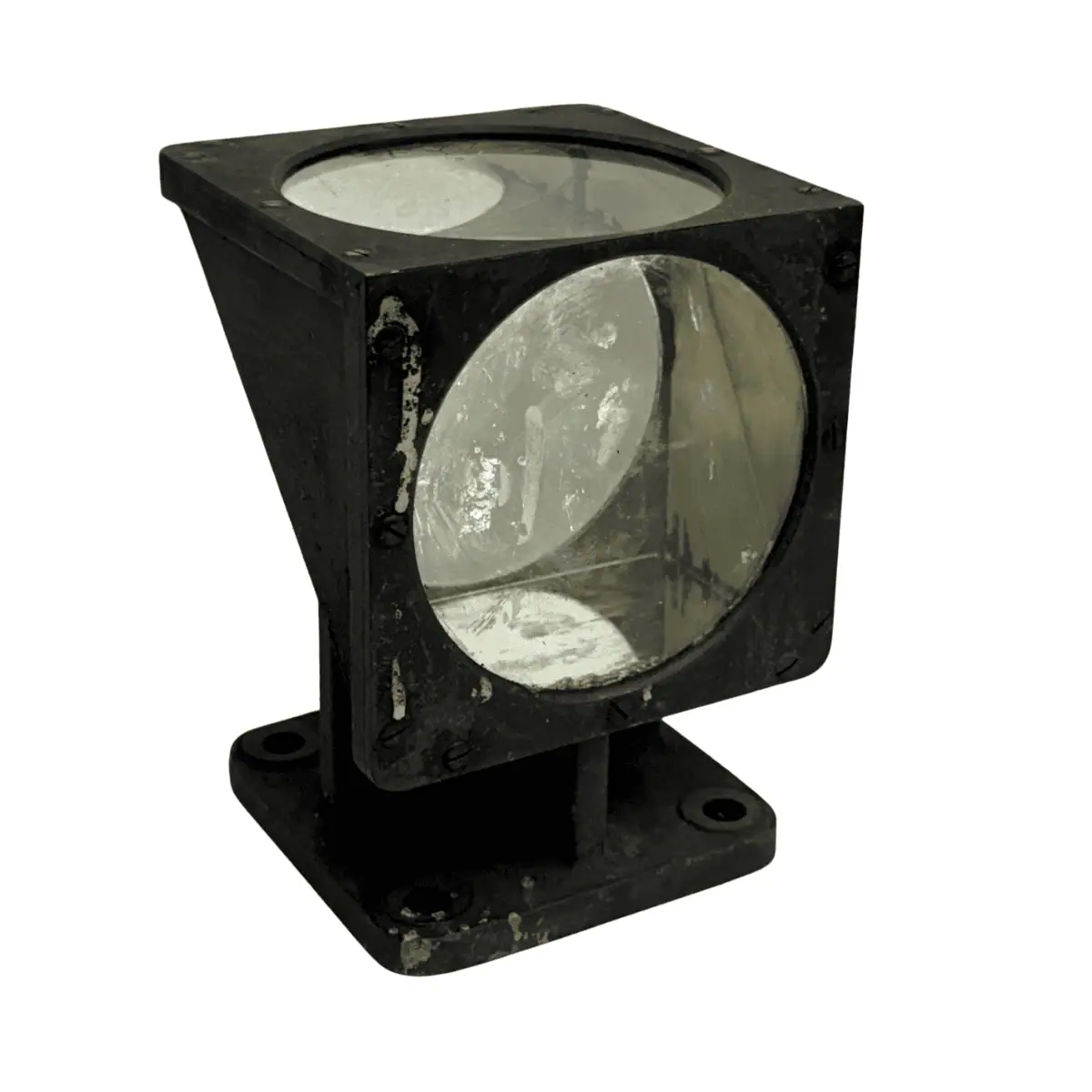

Vintage Marine Navigation Prism Viewer – Nautical Optical Instrument

This vintage marine navigation prism viewer was designed for use aboard ships to redirect a line of sight within a navigation setup. Instruments like this allowed a helmsman to view a compass or reference point from a different angle without moving position. As a result, it supported practical navigation in tight or enclosed helm stations.

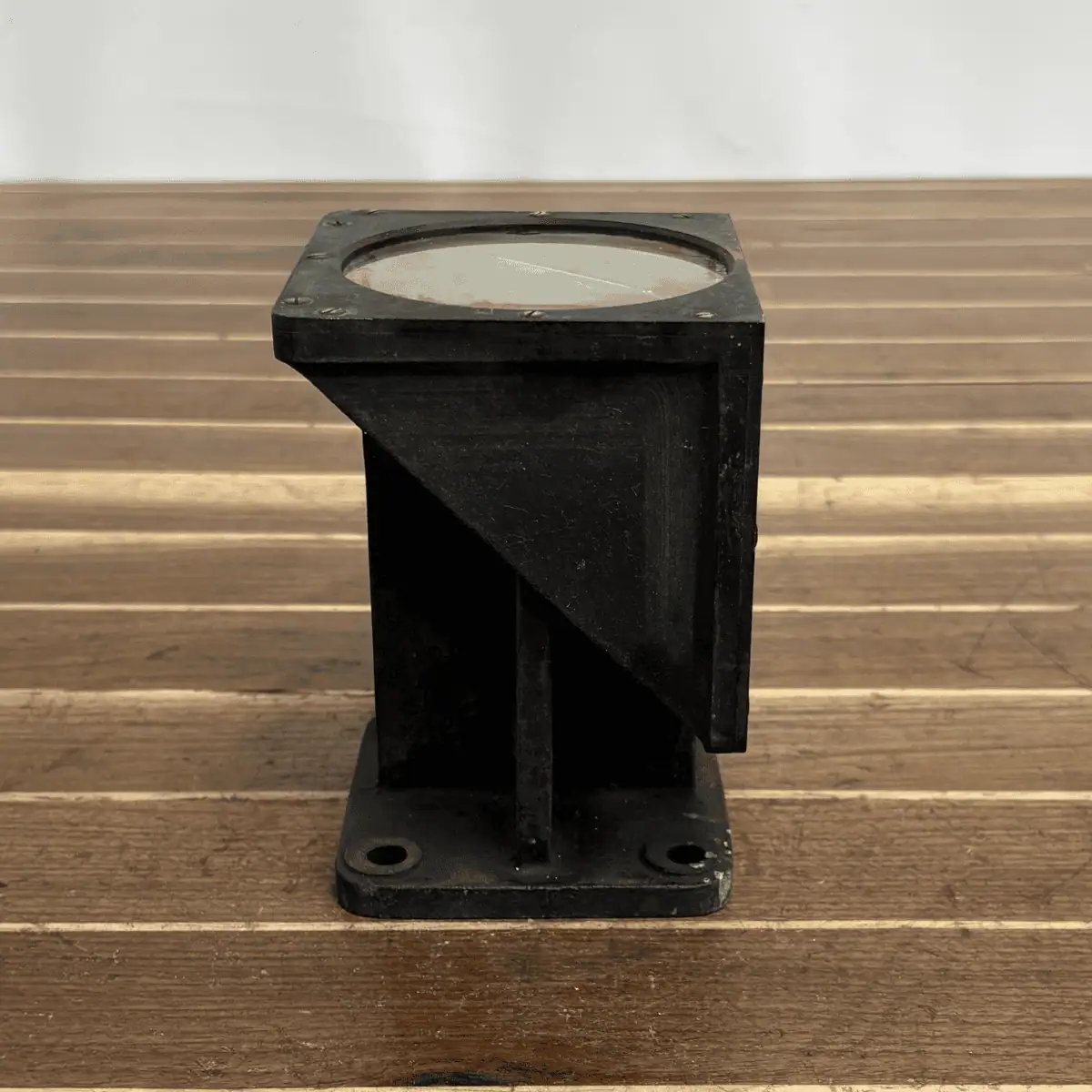

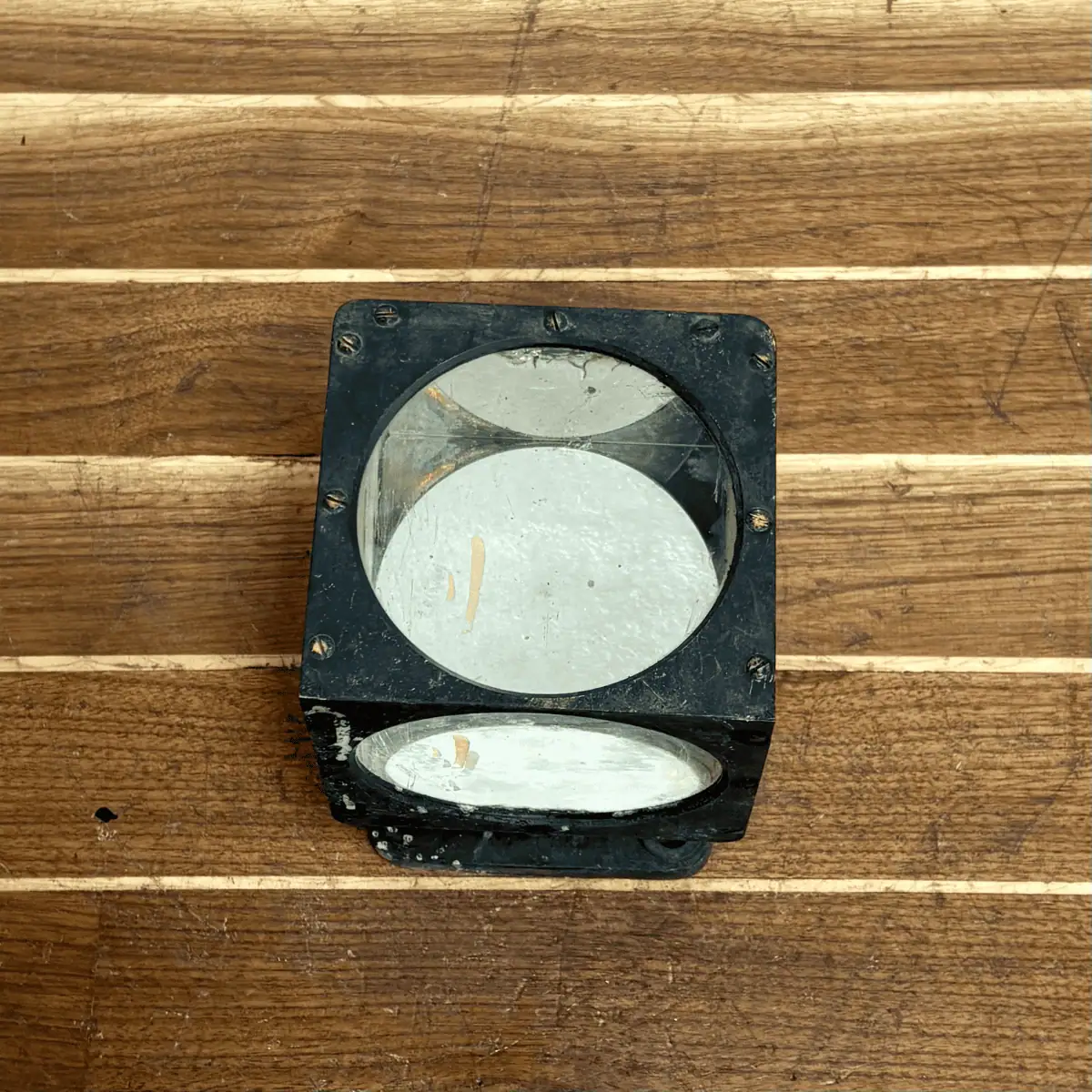

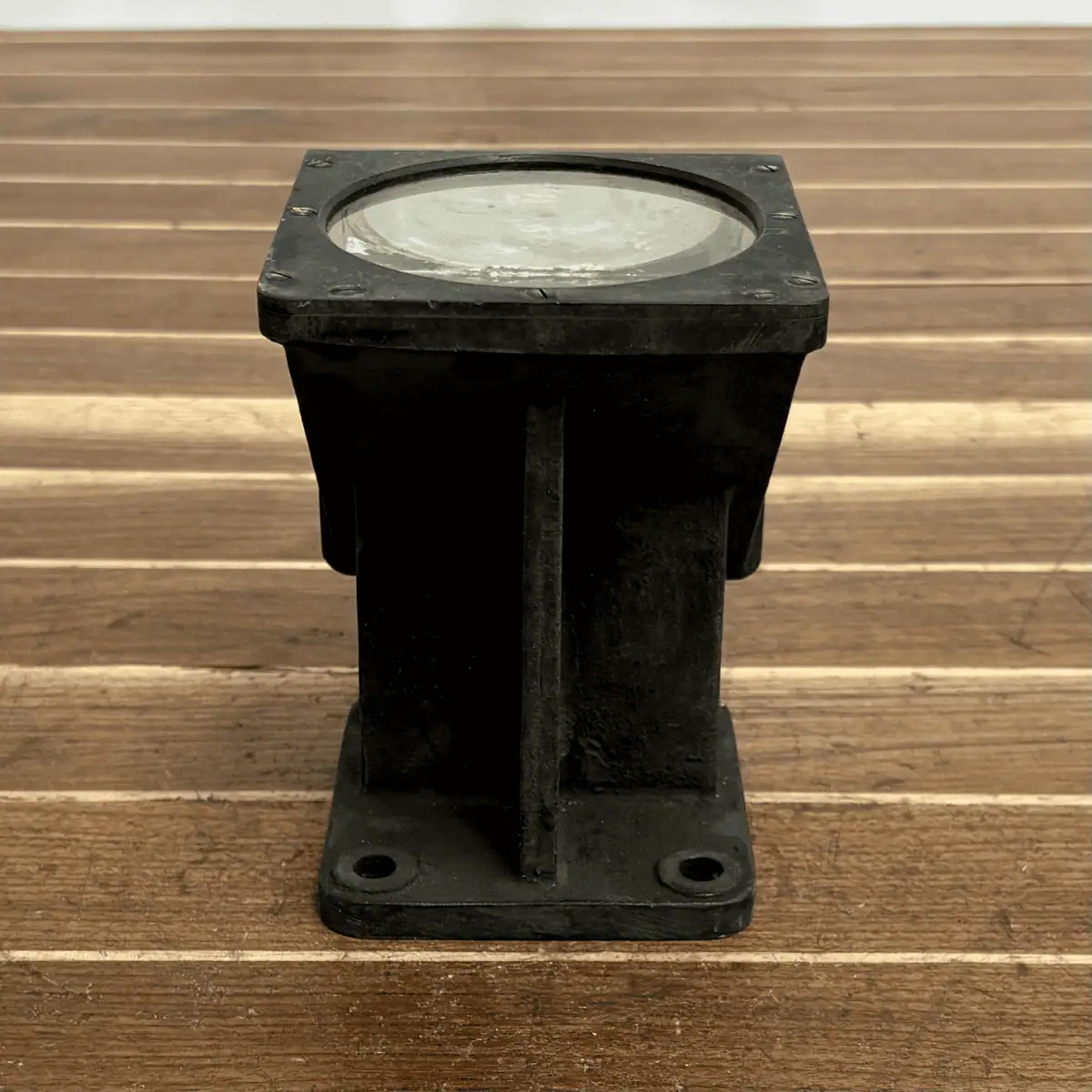

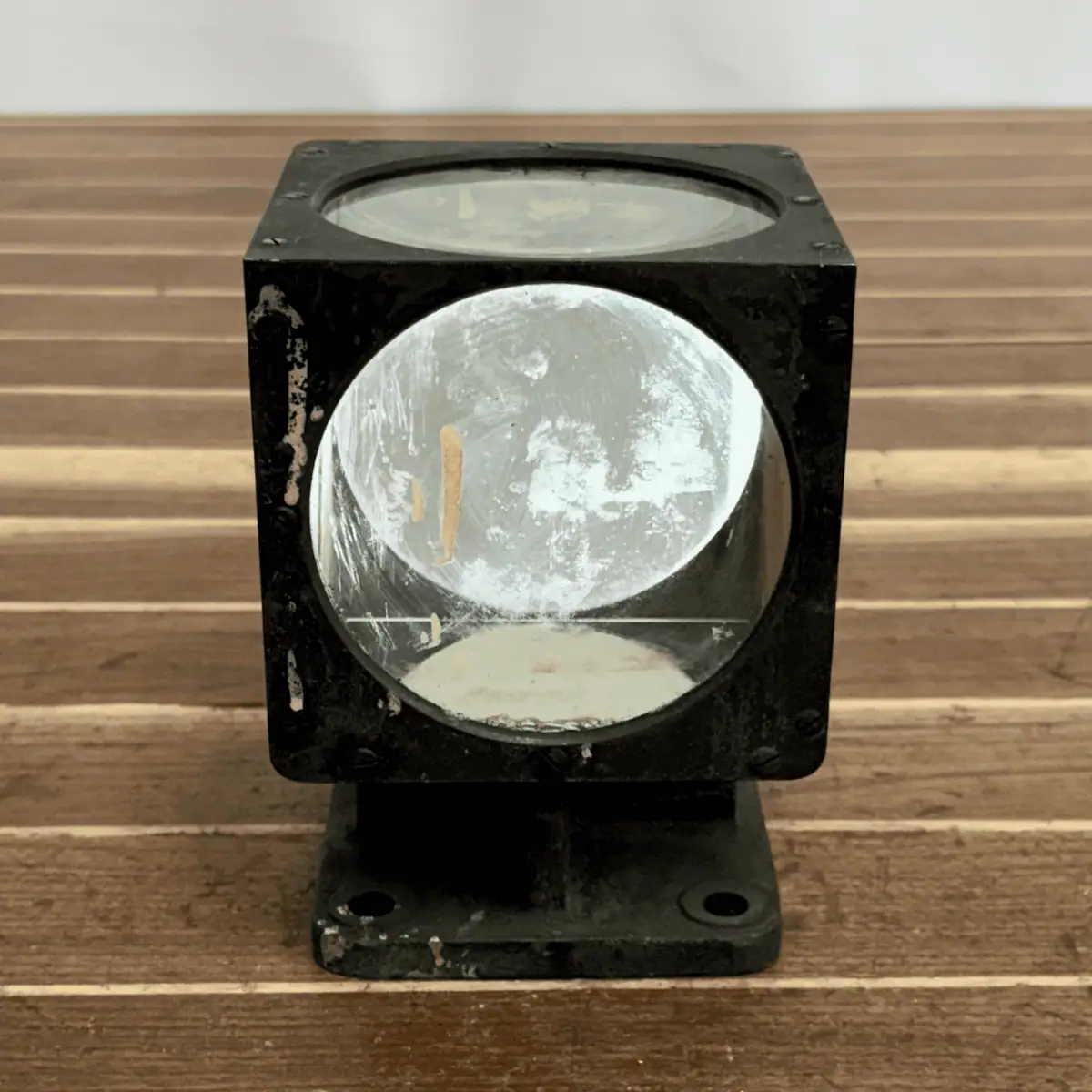

The housing features a heavy cast brass construction with a square viewing face and a top viewing lens. Inside, angled mirrored surfaces reflect and redirect the image between viewing points. This optical design allowed light or a sight line to pass through while maintaining visibility from another position.

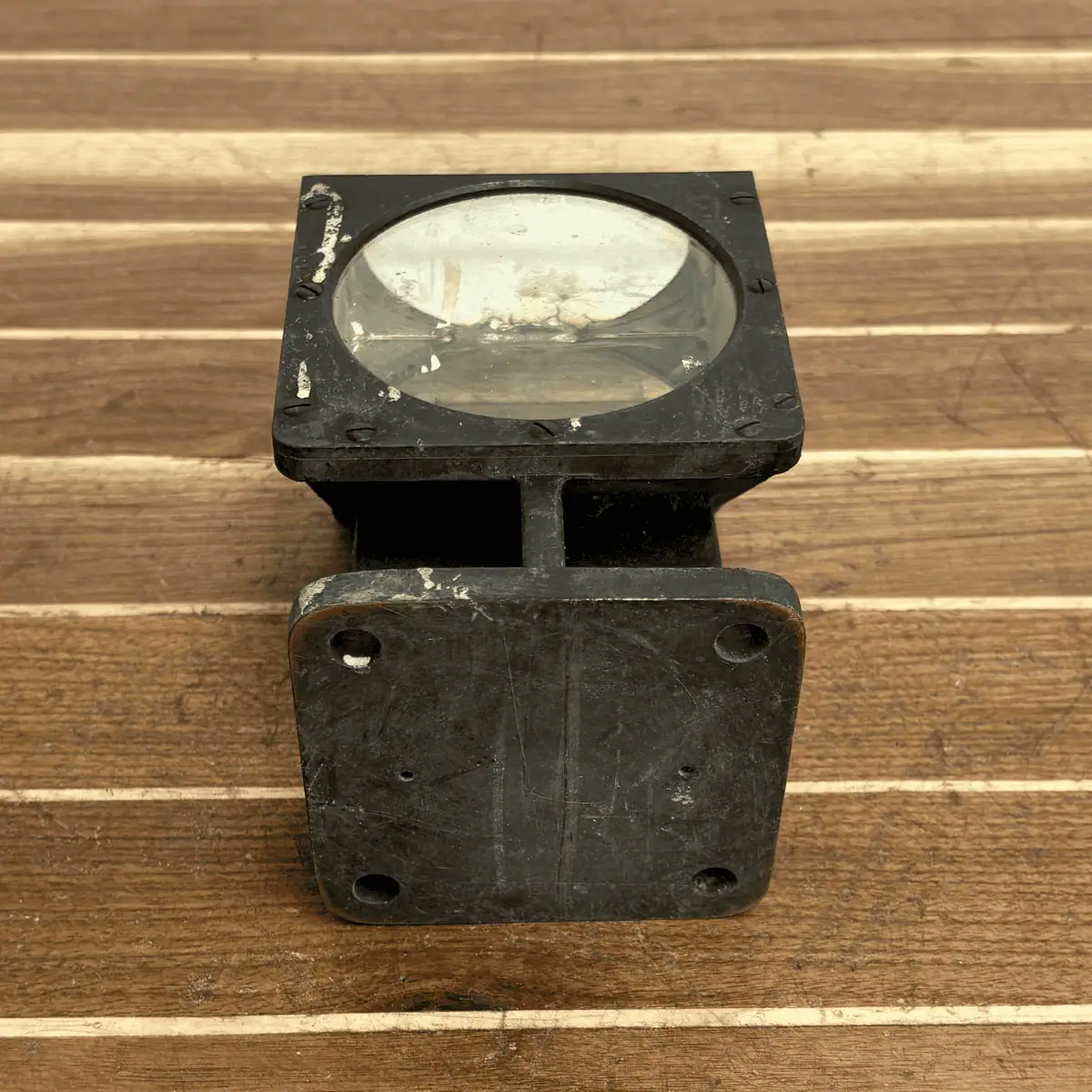

The base includes four mounting holes for secure installation on a fixed surface. Its weight and structure reflect its intended use in a working marine environment where stability was required. There is no visible maker’s mark on this piece. However, the materials and construction are consistent with mid- to late-20th-century marine navigation equipment.

Because of its form and function, this piece works well as a display item in offices, lake houses, or nautical-themed interiors. It also fits into collections focused on navigation instruments and shipboard equipment.

Features & Uses

• Heavy cast marine prism viewer with mirrored interior
• Designed to redirect compass or sight lines aboard ships
• Dual viewing angles through front and top lenses
• Stable base with mounting holes for fixed installation
• Suitable for display, collection, or nautical décor

Condition

The housing shows surface wear, paint loss, and scuffs from use. The glass and mirrored interior show wear and spotting. Overall, it reflects age and practical use in the marine environment.
