Vintage Nautical Parallel Ruler Navigation Tool – Acrylic Chart Plotter

This vintage nautical parallel ruler navigation tool was used aboard ships for chart work and course plotting. Navigators used tools like this to transfer angles across a chart while keeping lines parallel. As a result, it played an important role in traditional marine navigation before modern electronics became common.

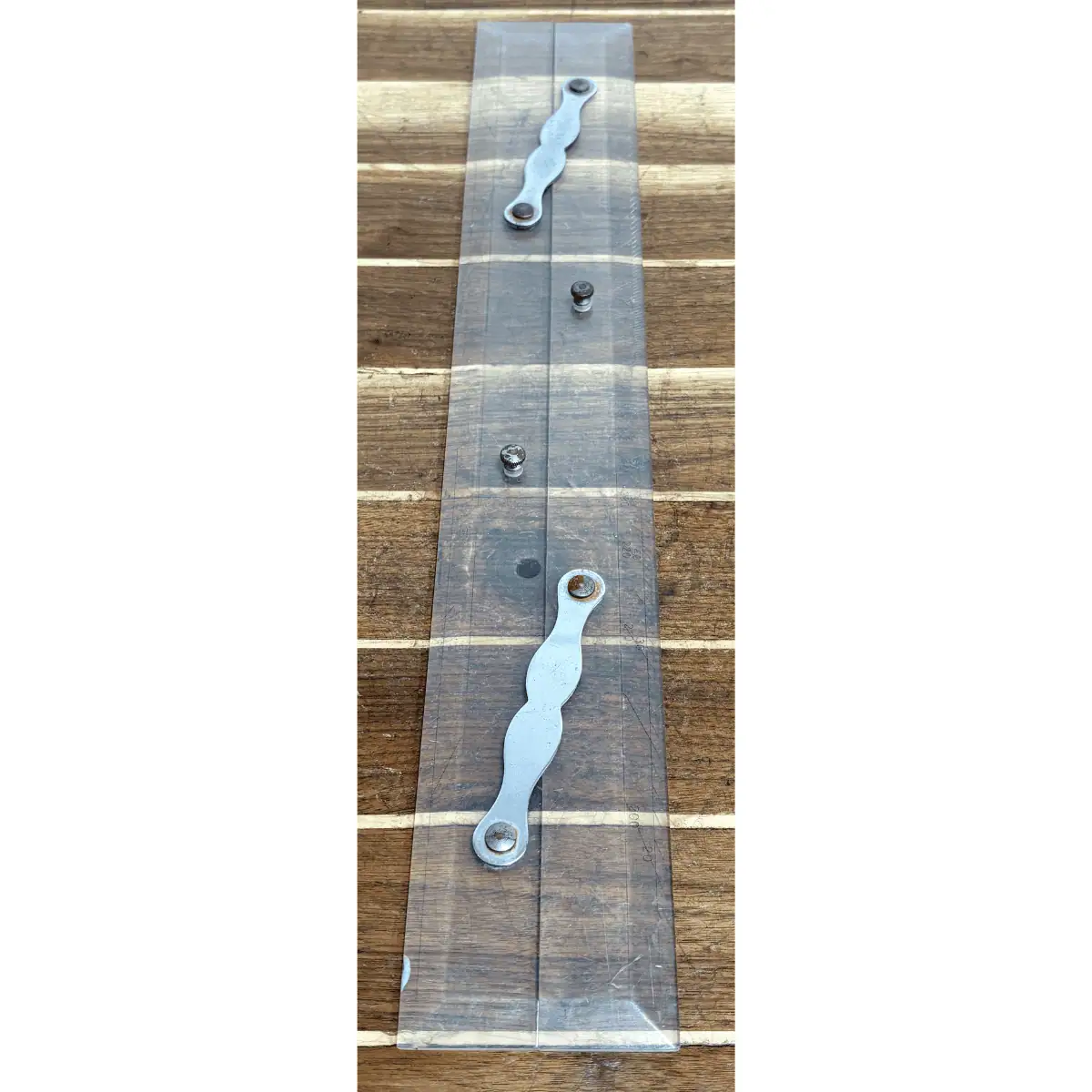

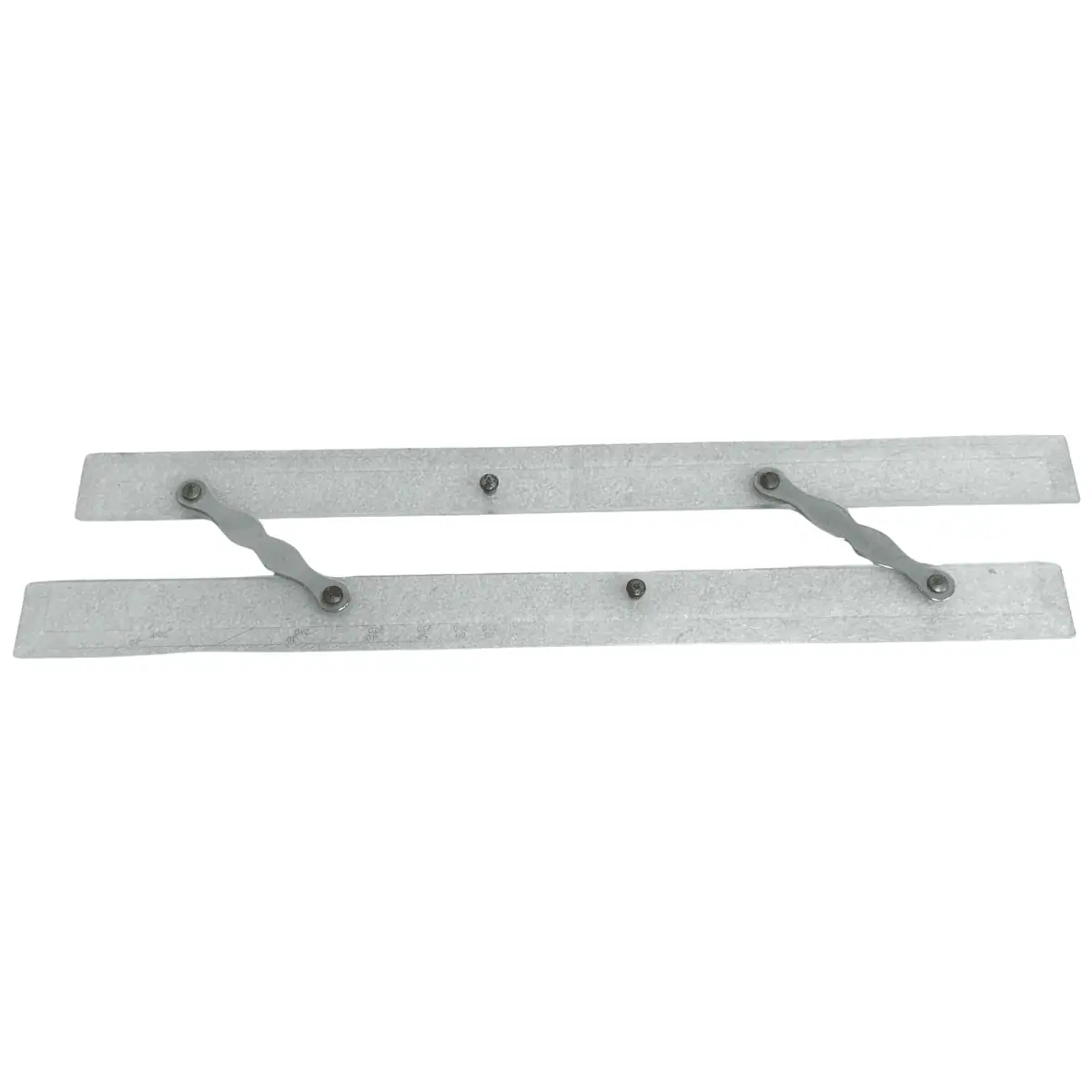

The ruler features two clear acrylic straightedges connected by metal linkage arms. These arms move together, which allows the user to slide the ruler across a chart without changing the angle. In addition, measurement markings along the edges help with accurate plotting and positioning. There is no visible maker’s mark on this piece. However, its construction and materials match commonly used marine plotting tools from the mid to late 20th century.

Because of its recognizable form and function, this piece works well in offices, lake houses, or nautical-themed spaces. It also fits well in maritime collections or display cases focused on navigation instruments

Features & Uses

• Clear acrylic rulers with etched measurement markings
• Metal linkage arms for parallel movement
• Traditional ship navigation and chart plotting tool
• Displays well on desks, shelves, or wall-mounted frames
• Suitable for collectors, offices, or coastal interiorsCondition

Condition

The acrylic shows surface scratches and light scuffing from use. The metal linkage arms show minor oxidation. Overall, it shows consistent wear from practical marine use and remains in solid working shape for display or collection.
